Siemens Siemens B27000S01


Description

Industry Description

BREAKER 70A 2P 120/240V 10K BL 120V SHNT 10 KAIC, W/120V S.T. FACTORY INSTALLED

Modified Industry Description

BREAKER 70A 2P 120/240V 10K BL 120V SHNT

AD Description

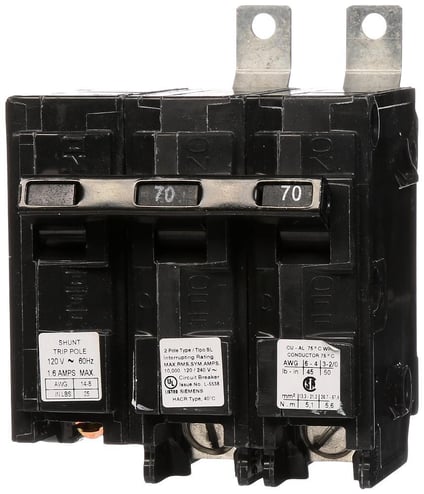

Siemens B27000S01 Type BL Molded Case Circuit Breaker, 120/240 VAC, 70 A, 10 kA Interrupt, 2 Poles, Shunt/Thermal Magnetic Trip

Vendor Description

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Specifications

Actuator
N/A
Amperage Rating
70
Application
Electrical Distribution
Connection
BOLT-ON
Country of Origin
MX
Dimensions
5 in L x 4 in W x 4 in H
Enclosure
N/A
Environmental_Conditions
N/A
Frame
BL
Frequency_Rating
60
Interrupt_Rating
10
Length1
4.0000
Material
N/A
Mounting_Type
Panel
Number_Of_Poles
2
Operating_Temperature
N/A
Phase
1
Special Features

  • 120 VAC shunt trip
  • 8 to 4 AWG copper, 8 to 2 AWG aluminum wire
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Measure the amount of over current
  • Mounting with insta-wire
  • Sense when an over current occurs
Standard
ULLISTED/CSA/NOMCERTIFIED
Sub_Brand
N/A
Temperature_Rating
40
Type
BL
Voltage Rating
120/240
