Siemens Siemens E1SJD63B250
Siemens E1SJD63B250
Kirby Risk #: 1920297
UPC: 783643296343, 00783643296343, 78364329634
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

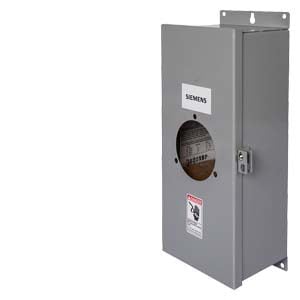

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 250A 3-POLE 600V STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY (JD63B250). INTERCHANGEABLE TRIP UNIT. NEMATYPE 1 ENCLOSURE SURFACE MOUNTED (J6N1). ORDER NEUTRAL (W60992). INCLUDES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). ENCLOSURE DIMENSIONS (W x H x D) IN 22.42 x 41.19 x 10.70.
AD Description
Sentron™ E1SJD63B250 Type JD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 250 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Specifications
| Amperage Rating |
250
|
|---|---|
| Country of Origin |
MX
|
| Dimensions |
47 in L x 25 in W x 11 in H
|
| Enclosure |
TYPE 1S
|
| Environmental_Conditions |
Indoor
|
| Frame |
JD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
47.0000
|
| Mounting_Type |
Surface
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
(-25C -- 75C) AMBIENT TEMPERATURE
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
-25 to 75
|
| Type |
Type JD6 Low Voltage
|
| Voltage Rating |
600
|
