Hubbell Hubbell PW2FEBC


Description

Industry Description

Hubbell Wiring Device Kellems, Non-Metallic Raceway, Latching WallTrak,WALLTRAK2, Base and Cover, Flat Elbow

Modified Industry Description

NON METALLIC RACEWAY FLAT EL

AD Description

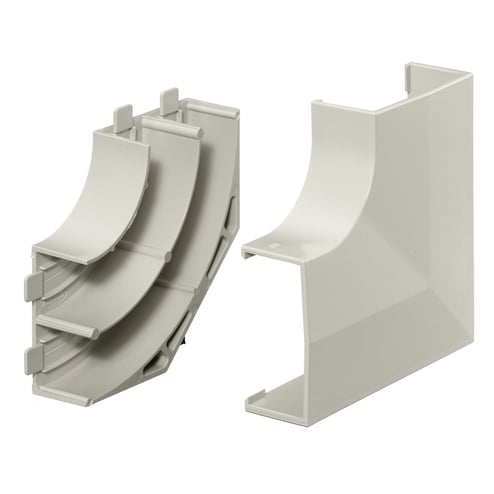

PREMISE WIRING WALLTRAK® PW2FEBC Flat Non Metallic Elbow Base and Cover, For Use With WALLTRAK® Non-Metallic Raceway, PVC, Off-White

Vendor Description

PolyTrak® non-metallic surface raceway is a complete system that includes raceway, fittings, boxes and devices. Sizes range from single channel Premisetrak® to three channel. Super Basetrak® for all types of surface raceway requirements. Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements.

Specifications

Application
PW2 Series
Brand Name
Hubbell
Color
Office White
Construction
Extruded
Country of Origin
US
Finish
Office White
Knockouts
None
Material
Non-Metallic
Nominal_Cross_Section
1.60 Square Inches
Non_Hazardous_Location
Non-Hazardous
Special Features

  • -25.6 to 158 deg F operating temperature
  • 300 lb crush resistance
  • 5 ft-lb impact resistance
  • Boxes have three cut-aways that can be utilized with WALLTRAK®, LanTrak® and Premisetrak® (latching) systems
  • Boxes utilize Hubbell® KP plates or iSTATION™ modules and bezels
  • Eliminates need to order three separate boxes and reducing inventory requirements
  • Extruded construction
  • Full capacity in-line boxes eliminate the need to de-rate the wire fill capacity due to the intrusion of devices into the raceway channel
  • NEMA 1 rated enclosure
Standard
UL 5A
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Flat Elbow
Width_2
6.0180
Width_3
6.0180
