NSI NSi PTS300
NSI PTS300
Kirby Risk #: 1916674
UPC: 00662381033499, 662381033499, 66238103349
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
Solid Pin Terminal for Copper and Aluminum Conductors 300 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Modified Industry Description
Aluminum, Tin Plated Pin Terminal, 300 MCM Wire Size, 4/0 AWG SOLid Pin, BROWN
AD Description

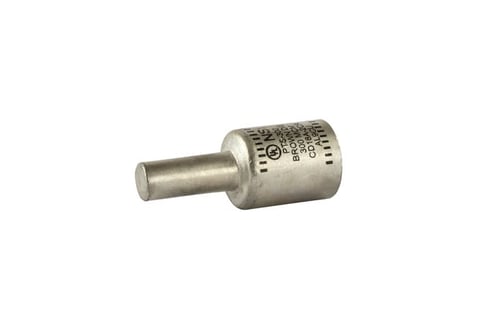

NSI PTS300 Dual Rated Solid Pin Terminal, 300 kcmil Conductor, 0.53 in Dia x 1.33 in L Pin, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Brown
|
| Conductor Range |
300 MCM (STR)
|
| Connection |
4/0 Pin
|
| Conductor Size |
300 kcmil
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum
|
| Package_Quantity |
1.000
|
| Pin_Diameter |
0.53
|
| Size |
L=2.74 - OD=1.09 - ID=.653 - Pin Dia=.530
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
Pin Terminals
|
| Type |
Solid Pin
|
| Voltage Rating |
600
|
