3M 3M 40178


Description

Industry Description

3M™ Scotchlok™ 40100 2 Hole Compression Lug is suitable for use with copper or aluminum conductors. The lug has a standard barrel that ensures a secure fit. Aluminum construction offers high conductivity and an electro tin plated finish resists corrosion. It is rated for 35 kV voltage applications.

Modified Industry Description

1000 MCM Copper/Aluminum two Hole Lug

AD Description

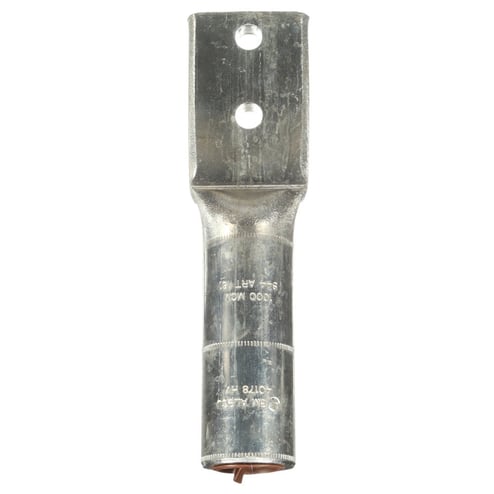

Scotchlok™ 40178 2-Hole Compression Lug, 1000 kcmil Conductor, 1/2 in Stud, Aluminum

Specifications

Application
Aluminum or Copper Conductors
Brand Name
3M
Color
Brown
Conductor Material
Aluminum - Copper
Conductor Size
1000
Country of Origin
US
Label_Description
3M(TM) SCOTCHLOK(TM) COPPER/ALUMINUM TWO HOLE LUG 40178, BROWN, 1000 KCMIL, 6 PER CASE
Number_Of_Holes
2
Package_Quantity
6
Special Features

  • 1-3/4 in center of hole to center of hole
  • 1-3/4 in stud hole spacing
  • Aluminum construction offers high conductivity and an electro tin plated finish resists corrosion
  • Barrel has brown stripes that help to indicate the wire range
  • Chamfered ends ensure simplicity and ease of conductor insertion
  • Contact aid provided in the lug barrel is compatible with poly/EPR insulation
  • Each lug is electro-tin plated to resist electrolytic corrosion
  • Electro tin plated
  • For use with copper or aluminum conductor
  • Standard barrel ensures a secure fit and offers reliable performance
  • These aluminum lugs feature color coded end caps for identification
  • They are designed to be crimped onto either aluminum or copper conductors
Standard
UL
Stud_Size
1/2
Sub_Brand
3M
Type
Standard Barrel
