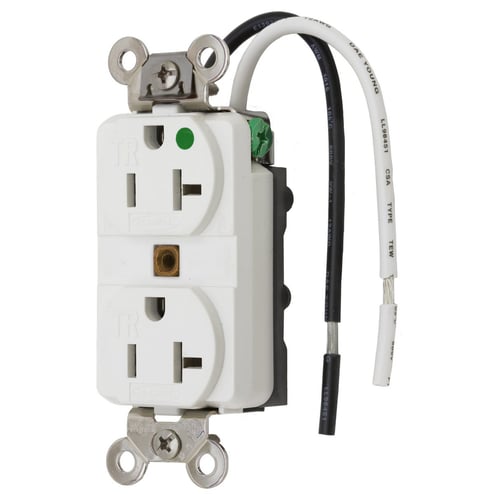

Hubbell Hubbell HBL8300SGWA


Description

Industry Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Safety Grade Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V,5-20R, White, Single Pack

Modified Industry Description

20A 125V RECPT WHITE HOSPITAL

AD Description

Wiring Device-Kellems HBL8300SGWA Duplex Extra Heavy Duty Standard Tamper-Resistant Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Specifications

Amperage Rating
20
Application
Extra Heavy Duty Hospital Grade
Brand Name
Hubbell
Color
White
Connection
Back and Side Wired Terminal Screws
Conductor Size
#14 AWG to #12 AWG
Country of Origin
CN
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Hospital
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Configuration
5-20R
NEMA_Rating
5-20R
Number_Of_Poles
2
Number_Of_Wires
3
Phase
1
Size
Standard Sized Product
Special Features

  • All hospital grade devices are marked with the green dot symbol, required by UL
  • Back wired ground terminal allows faster, easier installation
  • Barbed assembly arms reduce possibility of face/base separation
  • Deep body design increases impact and chemical resistance
  • Exclusive bypass contacts are made of nickel plated brass alloy, increasing blade retention, insuring reliable uninterrupted flow of power
  • External wiring clamps allow for visual inspection of the terminals
  • I.D. marking surface provides quick, sure circuit identification
  • One piece nickel plated brass integral ground strap for greater corrosion resistance
  • Patented ground contact provides redundant grounding
  • Providing contact stability, this high performance material will reduce heat buildup giving you long lasting performance
  • Reinforced thermoplastic base provides superior thermal, electrical and mechanical properties
  • Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion
  • Unique strand containment feature on the terminal ''bundles'' the wire, ensuring 100% clamping of wire strands and reducing heat from the termination
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Straight Blade Devices
Type
Duplex
Voltage Rating
125
Wattage
2000Watts
