Siemens Siemens HPXD63B120

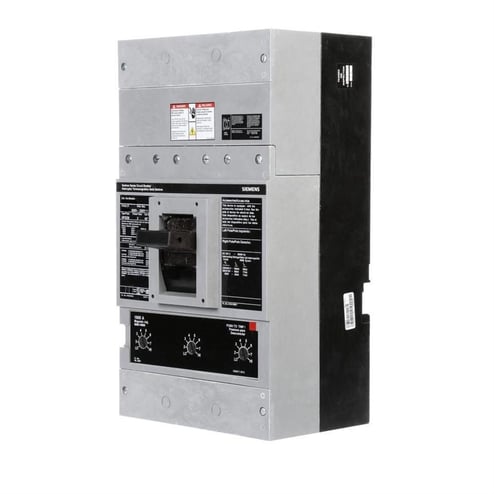

Siemens HPXD63B120
Kirby Risk #: 1905308
UPC: 00783643247727, 78364324772, 783643247727
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER PD FRAME WITH HIGH BREAKING CAPACITY. 1200A 3-POLE (50KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 9.00 x 16.0 x6.19.
Modified Industry Description
MCCB 40C 3P 1200A FX-TR N-LUG HIIC
AD Description
Sentron™ Speedfax™ HPXD63B120 Low Voltage Molded Case Circuit Breaker, 600 VAC/250/500 VDC, 200 A, 50 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
200
|
| Application |
Standard 40C Breaker
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Dimensions |
16 in L x 9 in W x 10 in H
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
PD
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
50
|
| Length1 |
10.0000
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3-Phase
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
HPXD6
|
| Voltage Rating |
600VAC OR 250-500VDC
|
