Minerallac Minerallac J200B500


Description

Industry Description

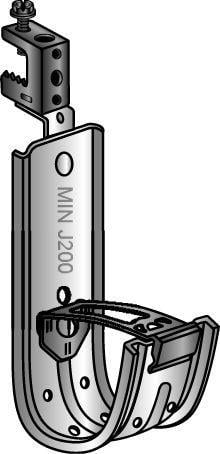

2" J-Hook, Right Angle Bracket and Set Screw Beam Clamp Assembly, Beam Clamp Fits up to 1/2" Flange, Includes Plastic Wire Retaining Clip, Pre-Galvanized/Spring Steel

Modified Industry Description

CABLE SUPPORT WIDE BASE ASSY - UP

AD Description

Minerallac Traditional® J200B500 Beam Clamp With J-Hook, 1/2 in Flange, Steel, Pre-Galvanized

Vendor Description

The new 2 in J-hook cable support system, designed to be versatile, can be attached to a wide variety of structures using beam clamps, clips and many other support components available from Minerallac®. The wide base support eliminates the undesirable impact of point loads that can cause band width deterioration and damage to category 5 and 6, fiber optic and other sensitive cables. This unique system saves both time and labor - another efficient method of cable installation.

Specifications

Application
Provides support without stress to sensitive voice/data cables.
Color
Silver / Yellow
Construction
Riveted Assembly
Country of Origin
USA
Dimensions
2
Finish
Pre-Galvanized
Length1
13.2500
Material
Steel
Mounting
Extended Bracket with 1/2" Flange Clip
Mounting_Type
Threaded
Size
2"
Special Features

  • Accommodates Cat 5, Cat 6, fiber-optic, interduct cable
  • Cable wire retainer is supplied with every part
  • Continuous wide base radius supports natural curve of cable, eliminating kinking, bending and crimping
  • Cost effective alternative to expensive cable tray
  • Riveted assembly construction
  • Silver/yellow color
Sub_Brand
Minerallac
Type
Cable Support
