NSI NSi PT600
NSI PT600
Kirby Risk #: 1900808
UPC: 00662381033130, 662381033130, 66238103313
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

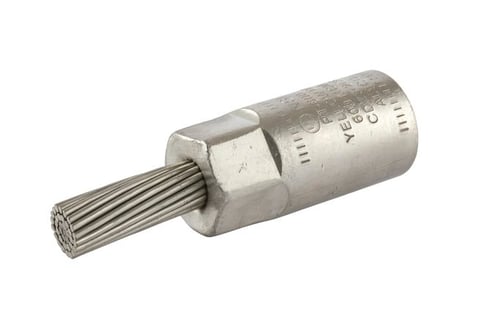

Stranded Bi-Metallic Pin Terminal 600 MCM Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Modified Industry Description
Bi Metallic Pin Terminal, 600 MCM Wire Size, 350 MCM Tin Plated STRanded Cooper Pin, YELLOW
AD Description
NSI PT600 Bi-Metallic Pin Terminal, 600 kcmil Conductor, 0.688 in Dia x 1.897 in L Pin, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Yellow
|
| Conductor Range |
600 MCM (STR)
|
| Connection |
350 Pin
|
| Conductor Size |
600 kcmil
|
| Country of Origin |
IND
|
| Finish |
Aluminum
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum - Tin Plated Copper Pin
|
| Package_Quantity |
1.000
|
| Pin_Diameter |
0.688
|
| Size |
L=4.96 - OD=1.50 - ID=.921 - Pin Dia=.688
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
Pin Terminals
|
| Type |
Bi-Metallic Pin
|
| Voltage Rating |
600
|
