Fluke FLUKE 87-5


Description

Industry Description

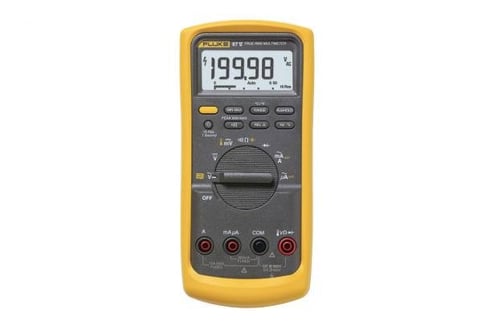

Fluke 80 Series V Digital Multimeters: The Industrial Standard. The most trusted industrial multimeter in the business. Designed and built in the U.S.A. Lifetime warranty

Modified Industry Description

Digital Multimeters Industrial

Specifications

Accuracy
+/-(0.7%+2) for AC Voltage True-RMS, +/-(0.05% + 1) for DC Voltage
Amperage Rating
10
Application
Voltage, current, frequency and capacitance measurements for everyday use
Bandwidth
20
Battery
9 V zinc, NEDA 1604 or 6F22 or 006P
Battery_Type
9 VDC Zinc, NEDA 1604 or 6F22 or 006P V
Brand Name
FLUKE
Capacitance
9999
Country of Origin
UKN
Dimensions
7.35 in H x 3.41 in W x 1.25 in D
DimensionsInches
7.35 x 3.41 x 1.25
Diode_Test
True
Display
Digital 6000 counts updates 4/sec, 19,999 counts in high-resolution mode; Analog 32 segments, updates 40/sec; Frequency 19,999 counts, updates 3/sec at > 10 Hz
Enclosure
Hard Plastic
Frequency_Rating
200
Material
Plastic
Model
Fluke 87V
Package_Quantity
5
Peak_Hold
True
Resistance
50
Resolution
10 uV/0.1 mV
Safety_Rating
CAT IV 600 V and CAT III, 1000 V
Special Features

  • "Classic" design with new removable holster with built-in test lead and probe storage
  • 0.05% DC accuracy
  • 4-1/2 digit mode for precise measurements (20000 counts)
  • 400 hr typical battery life with alkaline (with backlight off)
  • Analog bar graph for fast changing or unstable signals
  • Auto and manual ranging for maximum flexibility
  • Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
  • Built-in thermometer lets you carry one less tool (TC probe included), resistance, continuity and diode test, min/max average recording with min max alert to capture variations automatically
  • Improved selectable sleep mode for long battery life
  • Input alert provides audible warning against wrong use of input jacks
  • Large digit display with bright, 2 level backlight makes the 87 V significantly easier to read than older models
  • Large display digits and 2 level bright white backlight for increased visibility
  • Measure up to 10 A, 20 A for up to 30 s
  • Measure up to 1000 VAC/VDC
  • Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
  • Peak capture to record transients as fast as 250 us, relative mode to remove test lead interference from low Ohm measurements
  • Selectable filter for accurate voltage and frequency measurements on motor drives
  • Touch hold to capture stable readings avoiding noisy signals
  • True-RMS AC voltage and current for accurate measurements on non-linear signals
  • Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
Standard
Overvoltage category: EN 61010-1 to 1000 V CAT III, 600 V CAT IV; Agency approvals: UL, CSA, TÜV, VDE listed
Sub_Brand
Fluke
Temperature_Rating
-328 to 1994
Type
Industrial
Voltage Rating
1000
