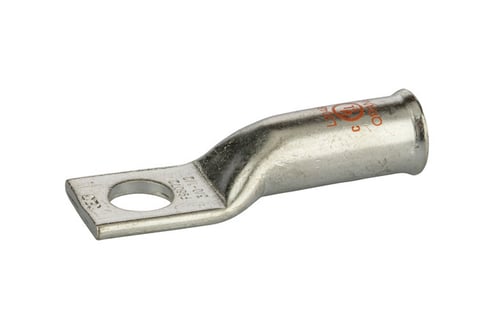

NSI NSi L3048B
NSI L3048B
Kirby Risk #: 1892416
UPC: 662381337054, 66238133705, 00662381337054
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
1 HoleLong Barrel Copper Compression Lug for Flexible Copper Cable3/0AWG - 1/2" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Modified Industry Description
#3/0 CU COMPRESSION LUG WITH BELLED
AD Description
NSI L3048B L-B Series 1-Hole Compression Lug, 3/0 AWG Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
3/0 AWG (STR)
|
| Color |
Orange
|
| Conductor Material |
Copper
|
| Conductor Size |
3/0
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Hole
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Size |
L=2.79 - W=.902 - OD=.622 - ID=.492
|
| Special Features |
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - One Hole - Belled End
|
| Voltage Rating |
600 V
|
