Hubbell Hubbell HBL23032B


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA,Screw Terminal, Black and White

Modified Industry Description

2P3W 20A 125V HUBBELLOCK FEMALE

AD Description

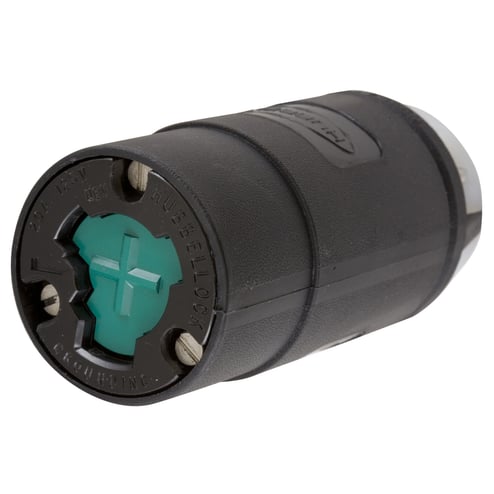

Wiring Device-Kellems Hubbellock® HBL23032B Grounding Locking Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Specifications

Amperage Rating
20
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Black
Conductor Range
#14AWG - #12AWG
Connection
Pressure Screw Terminal
Country of Origin
PR
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Grade
Industrial
Insulation
Insulated Body
Material
Nylon
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number Of Conductors
3-Wire Grounding
Number_Of_Poles
2
Number_Of_Wires
3
Size
Standard
Special Features

  • 0.02 in brass terminal clamp
  • 0.025 in bronze contact spring
  • 0.032 in bronze ground contact
  • 20 A 12 AWG terminal accommodation
  • Black thermoset body contact carrier
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Molded in/stamped on ratings
  • Natural (white) nylon cord clamp
  • NO 8 to 32 brass (green finish) ground screw
  • NO 8 to 32 brass (white finish on neutral screw when used) terminal screw
  • Permanently ink marked on product catalog number
  • Round portable service cords of diameters commensurate with the device rating
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Spring loaded safety shutter contains arcing when mating or run-mating devices under load
  • Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
  • UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability
  • Withstand 2000 VAC minimum dielectric voltage
  • Zinc plated steel multi drive cord clamp screw and body holding screw
Standard
UL498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Grounding
Voltage Rating
125
