NSI NSi PTO-750
NSI PTO-750
Kirby Risk #: 1886051
UPC: 00662381033291, 662381033291, 66238103329
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

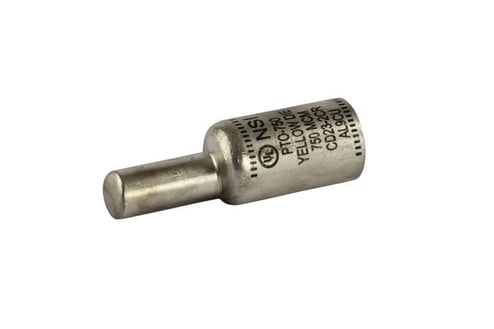

Offset Pin Terminal 750 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Modified Industry Description
Offset Aluminium, Tin Plated Pin Terminal, 750 MCM Wire Size, 500 MCM SOLid Pin , YELLOW
AD Description
NSI PTO-750 Dual Rated Offset Pin Terminal, 750 kcmil Conductor, 0.81 in Dia x 1.72 in L Pin, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Yellow
|
| Conductor Range |
750 MCM (STR)
|
| Connection |
500 Pin
|
| Conductor Size |
750 kcmil
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum
|
| Package_Quantity |
1.000
|
| Pin_Diameter |
0.81
|
| Size |
L=4.19 - OD=1.46 - ID=1.03 - Pin Dia=.810
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
Pin Terminals
|
| Type |
Offset Pin
|
| Voltage Rating |
600
|
