Hubbell Hubbell HBL430CS1W
Hubbell HBL430CS1W
Kirby Risk #: 1885865
UPC: 00783585010144, 783585010144, 78358501014
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

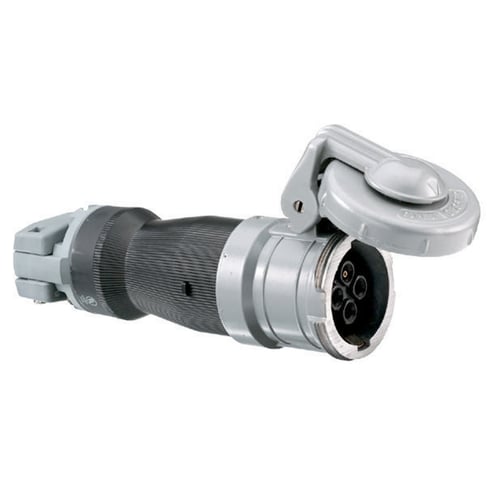

Hubbell Wiring Device Kellems, Heavy Duty Products, Insulgrip Pin andSleeve Devices, Industrial Grade, Female, Connector Body, 30A 600V AC,3-Pole 4-Wire Grounding Style 1, Terminal Screws, Gray and Black,Watertight
Modified Industry Description
30A 600V 3 POLE 4 WIRE FEMALE SLEEVE CONNECTOR BODY STYLE 1
AD Description
Wiring Device-Kellems HBL430CS1W Female Heavy Duty Standard Watertight Pin and Sleeve Connector, 600 VAC/250 VDC, 30 A, 3 Poles, 4 Wires, Black/Gray
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Black/Gray
|
| Conductor Range |
#10AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, and UL1686
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
|
| Type |
Standard
|
| Voltage Rating |
600/250
|
