Siemens Siemens RXD63B200
Siemens RXD63B200
Kirby Risk #: 1882272
UPC: 783643247611, 00783643247611, 78364324761
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

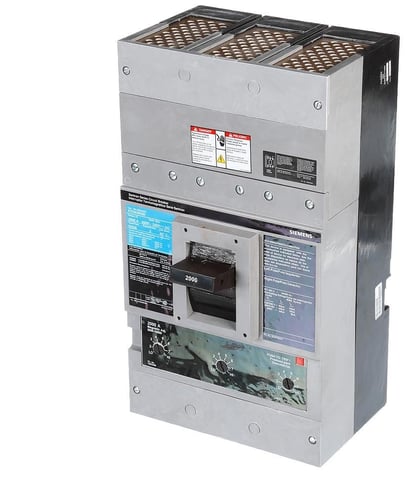

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER RD FRAME WITH STANDARD BREAKING CAPACITY. 2000A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 9.00 x 16.0 x 6.19.
Modified Industry Description
3P 2000A CB
AD Description
Siemens Sentron™ RXD63B200 Type RXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250/500 VDC, 2000 A, 25 kA Interrupt, 3 Poles, Non-Interchangeable Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
2000
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
RXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Poles |
2
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
5000 to 10000
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
600 VAC/250/500 VDC
|
| Width_2 |
40.0000
|
