O-Z/Gedney O-Z/Gedney 4Q9250T


Description

Industry Description

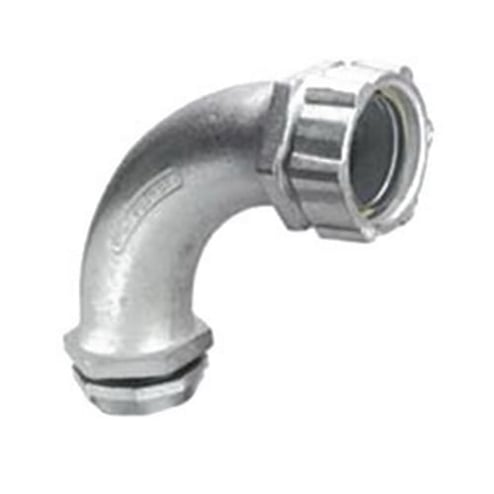

OZ-Gedney Type 4Q-T Liquid Tight 90 DEG Connector, Size: 2-1/2 IN, Connection: Tapered MNPT Hub, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, Insulated Throat, 4-1/8 IN Width, Dimension A: 7-1/2 IN, Dimension D: 7-1/8 IN, 1 IN Thread Length, Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, For Liquidtight Flexible Metal Conduit

Modified Industry Description

2-1/2 IN 90 DEG CONN LFMC

Specifications

Application
For Liquidtight Flexible Metal Conduit
Connection
Tapered MNPT Hub
Country of Origin
MX
Dimensions
4-1/8 in W
Finish
Zinc Electroplated
Insulation
Insulated Throat
Length1
14.3000
Material
Malleable Iron
NEMA_Rating
NEMA 4
Series
4Q-T
Size
2-1/2
Special Features

  • Bonding wedge locknuts are recommended in hazardous locations
  • Compact, slim diameter with small turning radius
  • Inspection windows in ferrule to ensure full conduit engagement
  • Intrinsically safe
  • Long ferrule prevents pullout and tight bend conduit "pop-out"
  • Suitable for wet locations
  • Tapered threaded male NPT hub
Standard
Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
Type
Concretetight Liquidtight Oiltight Raintight
