Thomas & Betts Thomas & Betts 335P


Description

Industry Description

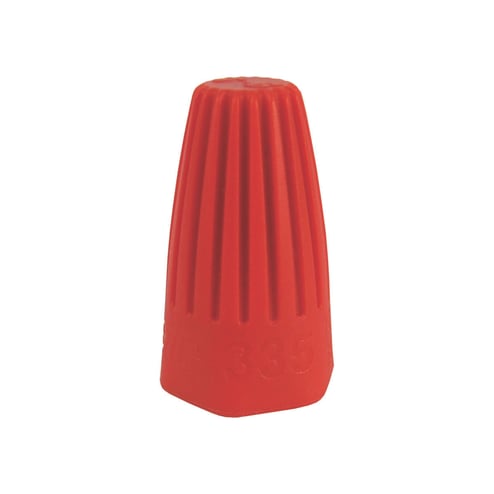

Red XTP non-winged wire connector. (100 pieces per box)

AD Description

Marrette® XTP® 335P High Quality Twist-On Wire Connector, Non-Winged Shell, Live Action Spring, 14 to 10 AWG Solid/Stranded Copper Wire, Polypropylene

Vendor Description

Marrette® invented the pressure wire connector in 1914 and remains the class of the field and the standard by which all pressure wire connectors are judged.

Specifications

Color
Red
Country of Origin
CA
Finish
Matte
Material
Polypropylene
Size
Min 2 #14, MaX 3 #10
Special Features

  • (2) 14 AWG to (3) 10 AWG wire combinations
  • 1000 VAC rated for lighting fixtures and signs
  • Coated with 100% pure copper, which reduces the corrosion common to tin and zinc coated products
  • Color coded for quick and easy size selection
  • Connectors finger friendly design offers a truer grip for less hand fatigue during repeated use
  • Deep, wide throat ensures full insulation coverage
  • Exclusive live action variable volume spring expands to accommodate more wires with less twisting effort, compared to other connectors with a fixed spring design
  • Handles broader range of wire connection combinations
  • High grade tough, durable polypropylene outer shell prevents blooming or blossoming of the connector sidewall and unique copper coated spring helps resist corrosion
  • Outer shell maintains a constant moisture level, reducing the likelihood of the connector becoming dry, brittle and subsequently cracked due to extreme heat or cold
  • Posi-Grip® surface combines a matte finish with closely spaced, deep grooves for superior twisting power, even when hands are greasy or damp
  • Square wire spring construction that gives a positive conductor bite
  • Threaded entry helps guide large wire bundles into the spring chamber
  • Wire connector to offer a non-winged, variable volume live action spring in the connector
Standard
UL E9809
Temperature_Rating
105
Type
High Quality
Voltage Rating
600
