O-Z/Gedney O-Z/Gedney 4Q4400
O-Z/Gedney 4Q4400
Kirby Risk #: 1871547
UPC: 00783126619959, 78312661995, 783126619959
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

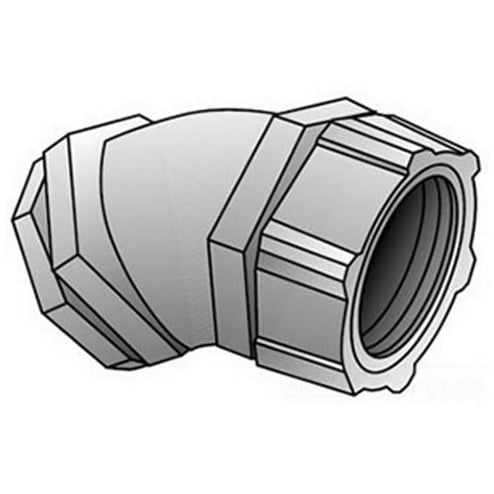

OZ-Gedney Type 4Q Liquid Tight 45 DEG Connector, Size: 4 IN, Connection: Tapered MNPT Hub, Malleable Iron Body and Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, 6-1/8 IN Width, Dimension A: 7-1/2 IN, 1-1/4 IN Thread Length, Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Class I, Division 2 Per NEC 501.4(B), Hazardous Locations: Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, For Liquidtight Flexible Metal Conduit
Modified Industry Description
4 IN 45 DEG CONN LFMC
Specifications
| Application |
For Liquidtight Flexible Metal Conduit
|
|---|---|
| Connection |
Tapered MNPT Hub
|
| Country of Origin |
MX
|
| Dimensions |
12-1/2 in H x 6-1/8 in W
|
| Finish |
Zinc Electroplated
|
| Length1 |
8.2000
|
| Material |
Malleable Iron
|
| NEMA_Rating |
NEMA 4
|
| Series |
4Q Series
|
| Size |
4
|
| Special Features |
|
| Standard |
Third Party Certification: UL File Number 11853, CSA 009795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Class I, Division 2 Per NEC 501.4(B), Hazardous Locations: Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
|
| Type |
Concretetight Liquidtight Oiltight Raintight
|
