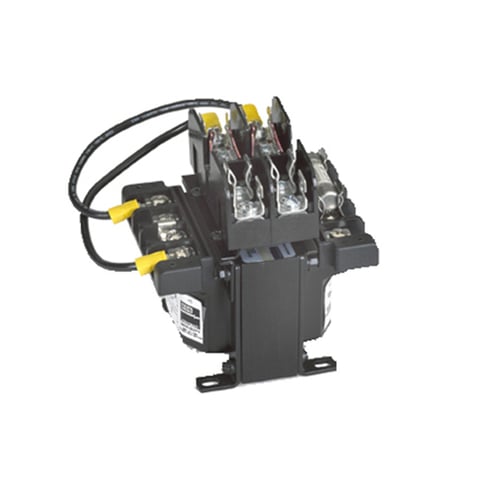

SolaHD SolaHD E300
SolaHD E300
Kirby Risk #: 1870618
UPC: 78347253127, 00783472531271, 783472531271
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description
Encapsulated Industrial Control Transformer 300VA, Volts Primary: 220x440, 230x460, 240x 480, Volts Secondary: 110, 115, 120, Frequency 50/60 HZ/60 HZ
Modified Industry Description
300VA 240/480V 120V SEC
AD Description
SolaHD E300 SBE Encapsulated Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 0.3 kVA, 50/60 Hz, 1 Phase
Vendor Description
The SBE encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
Specifications
| Brand Name |
SolaHD
|
|---|---|
| Country of Origin |
VN
|
| Frequency_Rating |
50/60
|
| Insulation |
105
|
| KVA_Rating |
0.3
|
| Mounting |
Heavy Gauge Steel Mounting Plate
|
| Number_Of_Channels |
220 x 440 Volt Primary, 110 Volt Secondary, 50/60 Hz; 230 x 460 Volt Primary, 115 Volt Secondary, 50/60 Hz; 240 x 480 Volt Primary, 120 Volt Secondary, 60 Hz
|
| Phase |
1
|
| Power_Rating |
0.3
|
| Primary_Voltage |
220 to 480
|
| Secondary_Voltage |
110/120
|
| Special Features |
|
| Standard |
cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
|
| Sub_Brand |
SolaHD
|
| Type |
Encapsulated
|
| Wattage |
250
|
