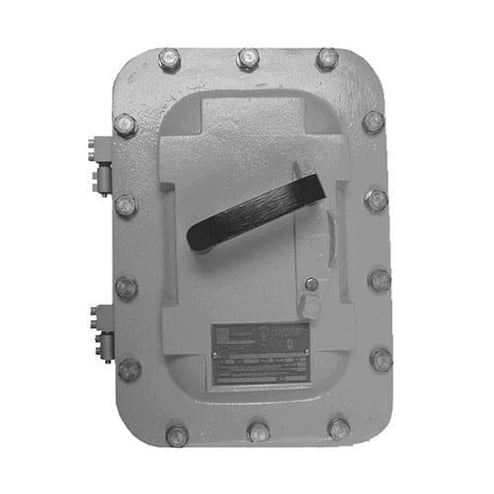

Appleton Appleton AEAB3036FDS

Industry Description

Explosionproof Disconnect Switch, Constructional Feature Explosionproof, Dust-Ignitionproof, Voltage Rating 600 VAC, 125/250 VDC, Current Rating 30 Ampere, Number of Poles 3, Fuse Provision Fusible, Fuse Type Type J, Operator Type External Handle, Cover Type Bolted, Hinged, Hub Size 1.5 Inch, Hub Location Top, Bottom, Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/4X/7/9, Enclosure Material Gray Epoxy Powder Coated Copper-Free Aluminum, Size 10.63 Inch W x 8.84 Inch D x 15.25 Inch H, Approval UL 1203, Application Chemical Plant, Petrochemical Plant, Petroleum Refineries, Industrial

Modified Industry Description

DISCONNECT SWITCH EXPLOSIONPROOF 30A 600V NON FUSED

AD Description

Appleton® AEAB3036FDS AE Series Fused Hazardous Location Disconnect Switch, 600 VAC/125/250 VDC, 30 A, 25/7.5 hp, 3PST Contact Form, 3 Poles

Vendor Description

Appleton® explosion proof, dust ignition proof AE series fused and non-fused disconnect switches provide explosion proof protection in areas where hazardous materials are handled or stored. These units are used for overload and short circuit protection, control of lighting and power circuits.
