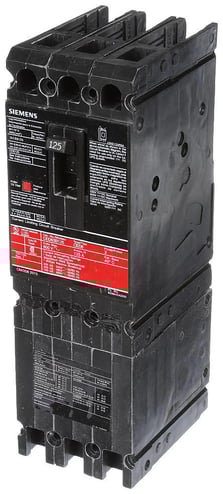

Siemens Siemens CED63B125
Siemens CED63B125
Kirby Risk #: 1869284
UPC: 783643210776, 00783643210776, 78364321077
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH FUSELESS CURRENT LIMITING BREAKING CAPACITY. 125A 3-POLE (100KAIC AT 600V) (200KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (TA1E6125) WIRE RANGE 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 9.6 x 3.92.
Modified Industry Description
3P 125A 600V CB
AD Description
Siemens Sentron™ CED63B125 Type CED6 Current Limiting Fuseless Low Voltage Molded Case Circuit Breaker, 600 VAC/500 VDC, 125 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
125
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Color |
Black
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
CED6/125A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
100
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
N/A
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Current Limiting Fuseless Low Voltage
|
| Voltage Rating |
600 VAC/500 VDC
|
| Width_2 |
3.5000
|
| Width_3 |
40.0000
|
