Burndy Burndy YA4C2LN


Description

Industry Description

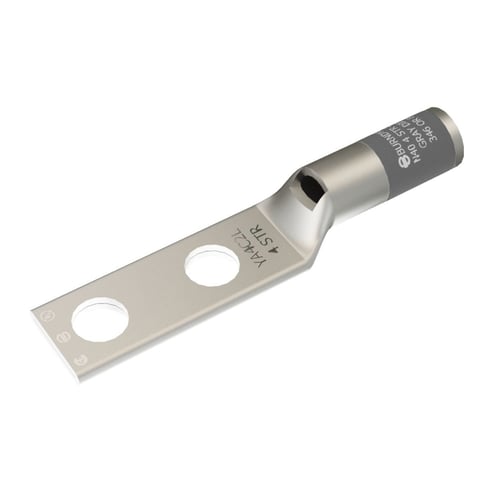

Copper Compression Lug, 2 Hole w/ Inspection Window, 4 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated.

Modified Industry Description

CU COMPR LUG 2 HOLE 4 AWG 1/2 STUD SHORT

AD Description

BURNDY® HYLUG YA4C2LN YA-2LN 2-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, Die Code: 8/346, 1/2 in Stud, Copper

Vendor Description

BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.

Specifications

Application
For Code Conductor
Brand Name
Burndy
Cable_Size
4 AWG
Color
Gray
Conductor Material
Copper
Conductor Size
4
Country of Origin
US
Material
Copper
Mounting
1-3/4 IN Stud Hole Spacing
Number_Of_Holes
2
Package_Quantity
1
Special Features

  • Die set catalog number and (number of crimps): mechanical: MD6, OUR840, MD7-34R tool, W4CVT die, (1), hydraulic: BCT500HS, Y500CTHS tool, X4CRT die, (1), Y35, Y39, Y750, PAT750 tool, U4CRT die, (1), Y46 tool, U4CRT die with PUADP-1 adapter, (1), dieless tools (number of crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 tool, (1), Y1MRTC tool, (2), conductor type: commercial stranded copper
Standard
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
Stud_Size
1/2
Sub_Brand
Burndy
Temperature_Rating
90
Type
2-Hole
Voltage Rating
600 VAC to 35 kV
