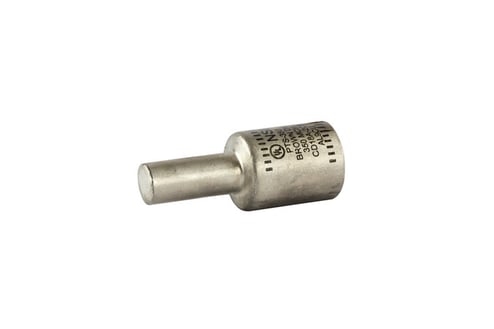

NSI NSi PTS350
NSI PTS350
Kirby Risk #: 1862757
UPC: 00662381033604, 662381033604, 66238103360
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
Solid Pin Terminal for Copper and Aluminum Conductors 350 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Modified Industry Description
Aluminum, Tin Plated Pin Terminal, 350 MCM Wire Size, 250 MCM SOLid Pin, BROWN
AD Description
NSI PTS350 Dual Rated Solid Pin Terminal, 350 kcmil Conductor, 0.57 in Dia x 1.33 in L Pin, Aluminum
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Brown
|
| Conductor Range |
350 MCM (STR)
|
| Connection |
250 Pin
|
| Conductor Size |
350 kcmil
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Insulation |
Plastisol Cover
|
| Material |
Aluminum
|
| Package_Quantity |
1
|
| Pin_Diameter |
0.57
|
| Size |
L=2.74 - OD=1.09 - ID=.716 - Pin Dia=.570
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Dual Rated
|
| Voltage Rating |
600
|
