Siemens Siemens E4XED43B030
Siemens E4XED43B030
Kirby Risk #: 1860565
UPC: 78364328433, 00783643284333, 783643284333
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

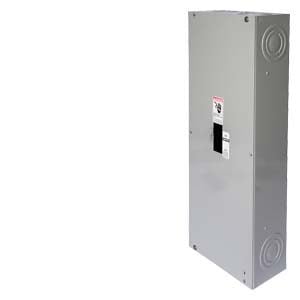

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 30A 3-POLE 480V STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY (ED43B030). NON-INTERCHANGEABLE TRIP UNIT. NEMA TYPE 4X STAINLESS STEEL ENCLOSURE (ED6SS4) WITH NEUTRAL (W53045). INCLUDES LINE AND LOAD SIDE LUGS (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). ENCLOSURE DIMENSIONS (W x H x D) IN 16.00 x 20.00 x 6.00.
Modified Industry Description
BREAKER ENC4X 3P 30A 480V 18KA
AD Description
Sentron™ E4XED43B030 Type ED4 Low Voltage Molded Case Circuit Breaker, 480 VAC, 30 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 A to 2000 A.
Specifications
| Amperage Rating |
30
|
|---|---|
| Country of Origin |
MX
|
| Dimensions |
25 in L x 17 in W x 11 in H
|
| Enclosure |
Type 4X
|
| Environmental_Conditions |
INDUSTRIAL CORROSIVE RESISTANT
|
| Frame |
ED
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
18
|
| Length1 |
25.0000
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
(-25C -- 75C) AMBIENT TEMPERATURE
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
-25 to 75
|
| Type |
Type ED4 Low Voltage
|
| Voltage Rating |
480
|
