Appleton Appleton ACP3033BC


Description

Industry Description

Powertite Grounding Style 1 Metallic Clamping Ring Plug, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase:

Modified Industry Description

30A 600V 3 POLE 3 WIRE MALE PIN PLUG

AD Description

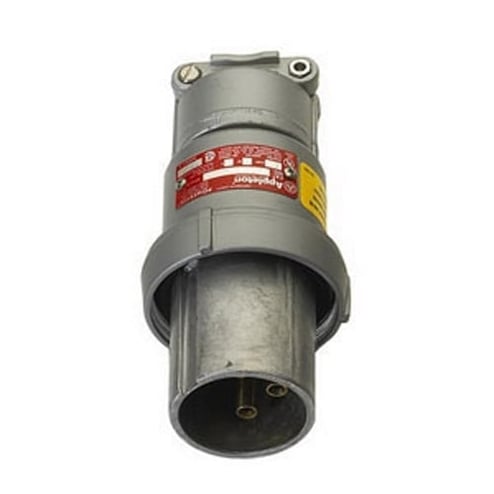

Appleton® Powertite® ACP3033BC 3-Phase Grounding Style 1 Clamping Ring Plug, 600/250 VAC/VDC, 30 A, 3 Poles, 3 Wires, Metallic

Vendor Description

Powertite® Series Plugs, Connectors and Receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 A designs, they feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, "make first, break last" grounding.

Specifications

Amperage Rating
30
Application
For ADR3033 Receptacle And ARC3033BC Connector Body
Brand Name
Appleton
Color
Metallic
Connection
Pressure Wire Terminal
Conductor Size
10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex)
Country of Origin
MX
Environmental_Conditions
Temperature Rating: -40 To 107 DEG C
Frequency_Rating
50/400
Material
Copper Free Aluminum
NEMA_Rating
NEMA 3/3R/4/4X
Number_Of_Poles
3
Number_Of_Wires
3
Phase
3
Special Features

  • 9/32 in dia wire recess
  • Contacts exert constant pressure along entire contact surface and provide electrical continuity
  • Controlled length contacts ensure that ground makes first and breaks last for added safety
  • Designed to supply power to portable or fixed electrical equipment
  • Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
  • Locking screw and slot prevents plug cable collar from "backing off"
  • Natural finish glass filled polyester insulating blocks
  • Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
  • Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
  • Shell grounding style 1
Standard
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
Sub_Brand
Appleton
Temperature_Rating
-40 to 225
Type
3-Phase Grounding Style 1
Voltage Rating
600/250
