Thomas & Betts Thomas & Betts 2232


Description

Industry Description

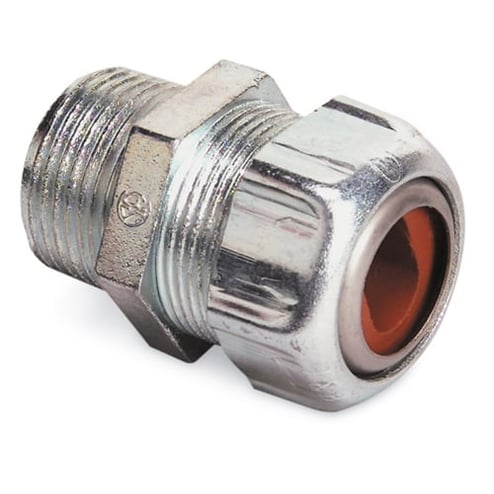

Watertight Connector for Oval Cable, Hub Size 3/4 Inch, Die Cast Zinc Body with Neoprene Bushing, Oval Cable Range Maximum .385 X .600 Inch, Minimum .260 X .500 Inch

Modified Industry Description

3/4 IN WATERTIGHT CONN DIE CAST ZINC CBL RANGE .260 - .600

AD Description

T&B® 2232 Straight Watertight Cable Connector With Neoprene Bushing, 3/4 in Trade, 0.26 x 0.5 to 0.385 x 0.6 in Cable Openings, Die Cast Zinc, Electro Plated Zinc/Chromate

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
To Connect Underground Feeder Cables to a Box or an Enclosure
Brand Name
Thomas & Betts
Cable_Type
Oval
Color
Metallic
Conductor Range
.260x.500 - .385x.600 Inch
Country of Origin
CA
Finish
Electro Plated Zinc/Chromate
Material
Die Cast Zinc
Special Features

  • 1-3/8 in max body corners
  • 1-3/8 in max gland corners
  • 9/16 in L thread
  • A design with two tapers inside the body, a slow one and a fast one permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
  • Design with two tapers inside the body-a slow one and a fast one-permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
  • Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened
  • Neoprene bushing, resists oil and water, grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
  • Rugged ribbed steel gland construction
  • Stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
  • Threads on the body are tapered for water sealing
Standard
UL E15170, CSA 589
Sub_Brand
Thomas & Betts
Trade_Size
3/4
Type
Straight
Width_2
8.9000
Width_3
8.5000
