Hubbell Hubbell 033011017


Description

Industry Description

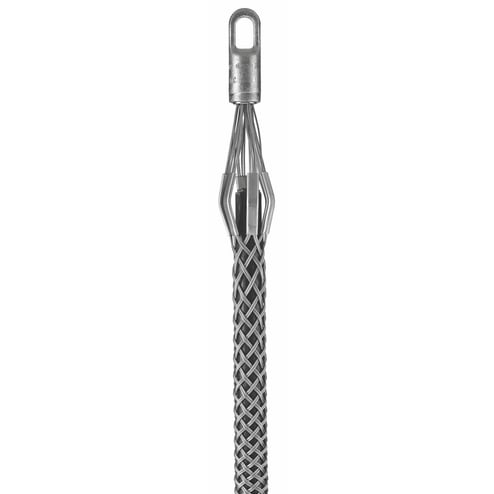

Hubbell Wiring Device Kellems, Pulling Grips, Underground Rotating Eye4.0-4.5", Short

Modified Industry Description

PULLING GRIPS

AD Description

Wiring Device-Kellems 033011017 Type K Short Standard Pulling Grip, 4 to 4.49 in, 33 in L Mesh, 1-7/8 in Dia Eye, 9600 lb, Steel

Vendor Description

Kellems pulling grips are reusable tools for pulling electrical cable, bare conductor or rope. They are easy and fast to install, providing the user with a smooth, slim profile that allows for easy passage through ducts, conduit, blocks and sheaves. Kellems pulling grips are made of the highest quality galvanized steel strand which assures the user of a long-lasting grip. There is a Kellems pulling grip for every pulling job.

Specifications

Application
Underground Pulling
Brand Name
Hubbell
Cable_Diameter_Range
4.00 in-4.49
Cable_Size
4 to 4.49
Cable_Type
Woven
Construction
Woven
Country of Origin
PR
Label_Description
ROTATING EYE FOR SPIN OUT OF PULLING TORQUE AFTER LOAD RELEASE
Material
Steel
Mesh_Length
33
Package_Quantity
1
Special Features

  • 48000 lb breaking strength
  • All grips feature double weave mesh for greater strength and added mesh contact on the table, to handle longer or heavier pulling jobs
  • An economical tool for pulling cable
  • Easily installed and removed
  • Galvanized steel strand
  • Rotating eye for spin out of pulling torque after load release
  • Safe, rugged and dependable
  • Steel eye, aluminum shoulders, Mylar tag
  • The forged eye mates easily with a swivel or shackle
  • The galvanized steel mess grip provides strength for secure pulling
  • The multi-weave styles add strength for big pulling jobs
Standard
CSA Certified
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Type K Short Standard
Width_2
3.0000
Width_3
18.3000
