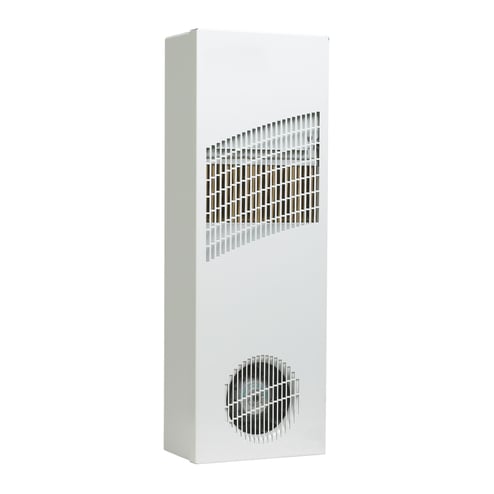

Hoffman Hoffman XR291816012


Description

Industry Description

ClimaGuard Air-to-Air Indoor, 29.66x10.24x5.92, Lt Gray, Steel

Modified Industry Description

HEAT EXCHANGER 115V 50/60HZ

AD Description

Hoffman ClimaGuard™ XR291816012 ProAir XR Series Compact Medium Enclosure Heat Exchanger, 115 VAC, 1.8 A, 18 W Power Rating, NEMA 3R Enclosure, 126/140 cfm Air Flow

Vendor Description

nVent Hoffmans ClimaGuard Indoor Heat Exchangers offer reliable closed-loop cooling while sealing out temperature extremes, dirt, dust, corrosive elements and washdown water. This robust heat exchanger allows efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Indoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface-mounted to an enclosure with no loss of enclosure integrity.

Specifications

Amperage Rating
1.8
Application
Available in several sizes, these high-efficiency, streamlined heat exchangers are designed for use on narrow or shallow enclosures. Locate heat-sensitive components in line with the Air Out opening of the heat exchanger.
Brand Name
Hoffman
Color
Light Gray
Country of Origin
US
Frequency_Rating
50/60
Material
Steel
Special Features

  • 120 cfm at 50 Hz, 133 cfm at 60 Hz external loop
  • 6 ft cord with NEMA 5-15 plug
  • Easy mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Filterless design for low maintenance and easy cleaning
  • Four fasteners allow simple removal of front cover for easy access
  • Low carbon mild steel sheet metal cover for rugged factory environments
  • Made of mild sheet steel
  • Maintains type 3R rating when mounted externally and in a vertical position on a type 3R enclosure
  • Reliable top quality bearing fans and impellers make these units run quietly and with increased reliability
  • Streamlined aesthetics with no visible mounting rails, slim design allows for mounting to narrow or shallow enclosures
  • Unique counter flow aluminum core for high efficiency and high performance heat transfer
Standard
Maintains UL/cUL Type 12 rating when properly installed on a UL/cUL Type 12 enclosure., Maintains Type 3R rating when mounted externally and in a vertical position on a UL/cUL Type 3R enclosure., XR200416012 and XR200426012 do not carry Type 3R rating.UL/
Sub_Brand
Hoffman
Type
Compact Medium
Voltage Rating
100/120
