Hubbell Hubbell HBL31CM28


Description

Industry Description

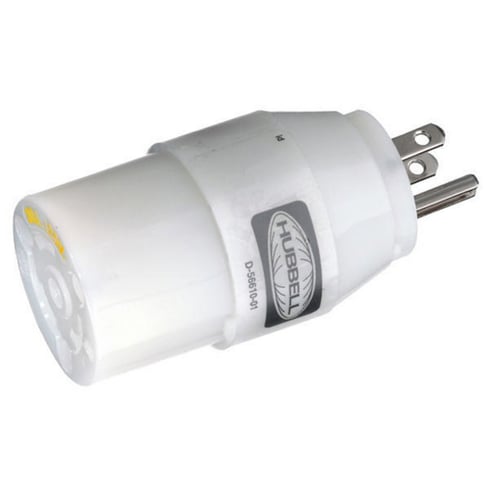

Hubbell Wiring Device Kellems, Adapter, Marine Adapter, NEMA 5-15P toNEMA L5-30R

Modified Industry Description

Adapter MARINE

AD Description

Wiring Device-Kellems Twist-Lock® HBL31CM28 1-Phase 2-Pole 3-Wire Grounding Standard Molded Plug-In Adapter, 125 VAC, 15 to 30 A, 3750 W Power Rating, Locking Female Slot End, Male Blade End

Specifications

Amperage Rating
15-30
Application
Straight Blade Male to Locking Female
Color
White
Connection
PLUG-IN
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Length1
7.5000
Material
Thermoplastic
Mounting
Plug-In
NEMA_Rating
5-15P To L5-30R
Number_Of_Poles
2
Phase
1
Size
Standard Sized Product
Special Features

  • Bull ring for strain relief on the terminals
  • Fully molded fittings (except 100 A) for superior waterproofing and durability
  • High impact PVC housing, UV stabilized
  • Hubbell adapters are weatherproof when mated with Hubbell cable sets
  • Jute fillers inside jacket for maximum cable flexibility, Hubbell cable coils neater, lighter and lays flatter
  • Large LED power ''ON'' light
  • Manual reset button
  • Molded-in flex feature controls the angle of cord entry and keeps water out
  • Nickel plated brass contact blades for corrosion resistance
  • Provides 15 A convenience power with GFCI protection
  • Sealed GFCI housing and keypad
  • Terminations utilize exclusive copper crimp barrel terminations, holds over 300% more securely
Standard
UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Plug-In Adapter
Voltage Rating
125
Wattage
3,750
