SolaHD SolaHD STV100K10S
SolaHD STV100K10S
Kirby Risk #: 1846192
UPC: 00783472019700, 783472019700, 78347201970
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description

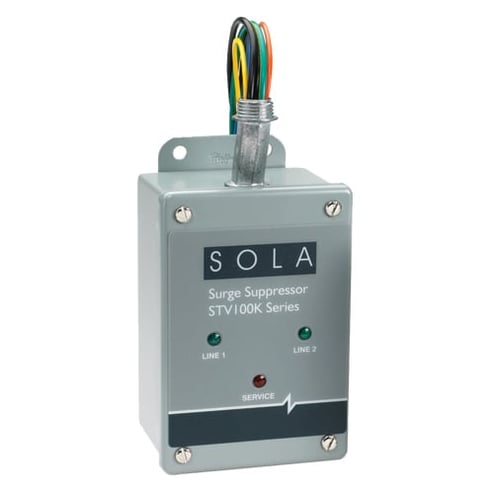

Surge Protection Device Panel Mount, Input Voltage 120/240, Single Phase 3 Wire + Ground
Modified Industry Description
TVSS 120/240V HARD WIRED
Specifications
| Brand Name |
SolaHD
|
|---|---|
| Connection |
Parallel
|
| Country of Origin |
MX
|
| Environmental_Conditions |
-40 to 60 deg C Temperature/0 to 95% Non Condensing Humidity
|
| Frequency_Rating |
47 to 63
|
| Material |
Metal
|
| Mounting |
Flange
|
| Nominal_Discharge_Current |
20
|
| Operating_Temperature |
-40 to 60
|
| Phase |
1
|
| Response_Time |
<0.5
|
| Size |
6.0 W X 4.0 D X 3.2 H
|
| Special Features |
|
| Standard |
cULus Listed: UL 1449, 3rd Edition, type 2 locations, UL Listed: NEMA type 12 enclosure, CSA Listed: CSA C22.2 No. 8, CSA TI I-IIB, TI A-24, RoHS Compliant
|
| Sub_Brand |
SolaHD
|
| Type_Of_Indicators |
Red & Green LED, Audible Alarm
|
| Type |
STV 100 K Series Surge Protection Devices
|
| Voltage Rating |
120
|
