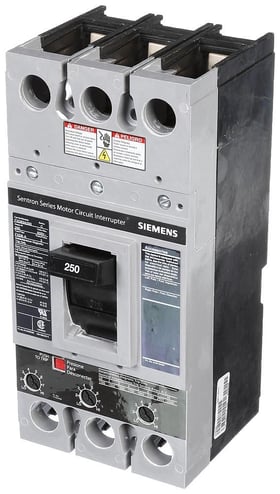

Siemens Siemens FXD63A250


Description

Industry Description

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD RANGE ETI BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 / IEC 60947-2 STANDARDS. 250A 3-POLE BREAKER (22KAIC AT 600V) (35KAIC AT 480V). SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 4.5 x 9.5 x 4.

Modified Industry Description

3P 250A 600V CB

AD Description

Siemens Sentron™ FXD63A250 Type FXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 250 A, 22 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Vendor Description

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Specifications

Actuator
Varying
Amperage Rating
250
Auxiliary_Contacts
N/A
Brand Name
Siemens
Connection
N/A
Country of Origin
MX
Enclosure
Varying
Environmental_Conditions
N/A
Frame
FXD6
Frequency_Rating
50/60
Interrupt_Rating
22
Material
N/A
Number_Of_Poles
3
Operating_Temperature
40C
Phase
3
Special Features

  • Blue label
  • Molded case circuit breakers are used in motor circuits as a disconnecting means and for short circuit protection
  • Standard range ETI breaker
  • The circuit breaker should have a continuous current rating of not less than 115% of the motor full load current
  • They should be used in conjunction with motor running, over-current-protection devices and should permit the motor to start without nuisance tripping from motor-inrush current
  • Varying actuator
  • Varying enclosure
Standard
HACR
Sub_Brand
Siemens
Trip_range
1100 to 2500
Trip_Type
Thermal Magnetic
Type
Low Voltage
Voltage Rating
600
Width_2
40.0000
