NSI NSi L50048
NSI L50048
Kirby Risk #: 1839288
UPC: 662381987082, 00662381034175, 662381034175, 66238103417
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

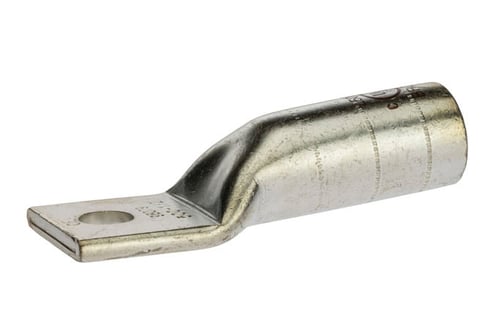

1 Hole Long Barrel Copper Compression Lug 500 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
Modified Industry Description
#500 CU COMPRESSION LUG
AD Description
NSI L50048 1-Hole Compression Lug, 500 kcmil Stranded Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Cable_Size |
500 MCM (STR)
|
| Color |
Brown
|
| Conductor Material |
Copper
|
| Conductor Size |
500
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Mounting |
1/2 Mounting Hole
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Size |
L=4.13 - W=1.53 - OD=1.06 - ID=.835
|
| Special Features |
|
| Standard |
UL486
|
| Stud_Size |
1/2
|
| Sub_Brand |
NSi
|
| Type |
Long Barrel - One Hole
|
| Voltage Rating |
600 V
|
