Thomas & Betts Thomas & Betts C28


Description

Industry Description

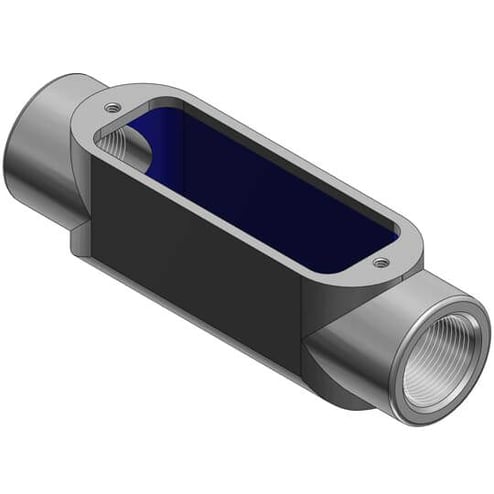

BlueKote Thru-Feed Form 8, 3/4 Inch Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

Modified Industry Description

3/4 INCH CONDUIT BODY IRON C F-8

AD Description

T&B® BlueKote® C28 Type C Conduit Body, 3/4 in Hub, Form 8 Form, 8 cu-in Capacity, Malleable Iron, Zinc Plated with Epoxy Powder Coated

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
Conduit bodies are installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors.
Brand Name
Thomas & Betts
Color
Gray
Configuration
C
Country of Origin
CN
Finish
Zinc Plated/Epoxy Powder Coated
Form
8
Hub_Size
3/4
Material
Malleable Iron
Special Features

  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Thru feed design
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
Standard
UL E2969
Sub_Brand
Thomas & Betts
Trade_Size
3/4
Type
Type C
Width_2
5.5000
