Siemens Siemens S40407-015F


Description

Industry Description

200A 7J RGLS 1POS LVRBPS MS OH/UG SSHASP

Modified Industry Description

200AMP MTR SCKT

AD Description

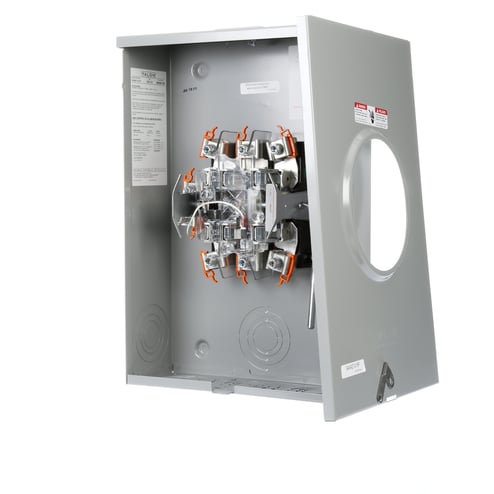

TALON® S40407-015F 8-Cutout 1-Position Type HQU Meter Socket, 600 VAC, 200 A, 3 ph Phase, NEMA 3R Enclosure

Vendor Description

Siemens meter socket designs have been in the industry for more than 60 years. No one knows metering installations like Siemens. Our meter sockets set the standard for quality, design and workmanship. This is why we use stainless steel hardware, polyester powder coat paint for long lasting protection and appearance, type G90 galvanized steel or 3003 grade aluminum enclosures and in our commercial sockets, an all plated copper current path. This is why Siemens meter sockets are seen in so many utility specifications.

Specifications

Amperage Rating
200
Brand Name
Siemens
Cable_Entry
Overhead/UnderGround
Country of Origin
MX
Cutout_Size
1X2.750,3X(1,1-1/2,2,2-1/2,3),1X1/2,3X(3/4,1,1-1/4,1-1/2,2,2-1/2,3)
Enclosure
Steel
Frequency_Rating
False
Mounting
SURFACE MOUNTING
Number_Of_Cutouts
8
Operating_Temperature
Average Ambient
Phase
3
Size
6.100X13.400X20.500
Special Features

  • Lever bypass sockets feature the type HQ socket which is recognized by utilities as the industry standard for durability and quality
  • Most commercial sockets include a ground lug and some models are available with line and load lugs installed
  • Siemens features one of the most complete and comprehensive meter socket lines
  • Steel construction
  • With 7/8 in barrel lock knockout, stainless steel latch and hasp, lever bypass, ground lug
Standard
UL
Sub_Brand
Siemens
Terminal
7 Terminals
Type
HQU
Voltage Rating
600
Width_2
40.0000
