Siemens Siemens E1SMXD63B800
Siemens E1SMXD63B800
Kirby Risk #: 1826773
UPC: 00783643299702, 78364329970, 783643299702
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description

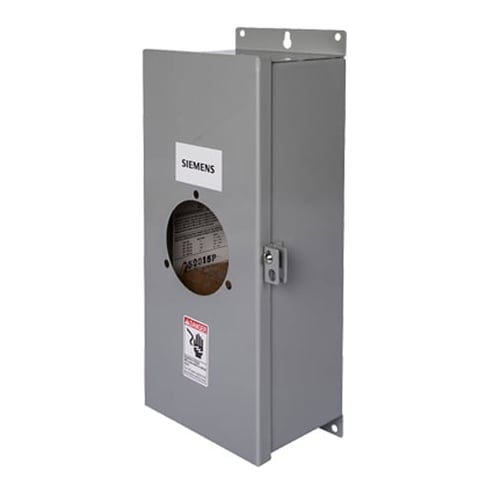

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 800A 3-POLE 600V STANDARD 40 DEG C BREAKER MD FRAME WITH STANDARD BREAKING CAPACITY (MXD63B800). NON-INTERCHANGEABLE TRIP UNIT.NEMA TYPE 1 ENCLOSURE SURFACE MOUNTED (MND61). ORDER NEUTRAL (W63623). INCLUDESLINE AND LOAD SIDE LUGS (TA3K500) WIRE RANGE 1/0AWG - 500KCMIL (CU/AL). ENCLOSURE DIMENSIONS (W x H x D) IN 22.42 x 60.00 x 10.00.
Modified Industry Description
ENCL1S BRKR MD6 3P 600V 800A FXD
AD Description
Siemens Sentron™ E1SMXD63B800 Type MXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 800 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Amperage Rating |
800
|
|---|---|
| Country of Origin |
MX
|
| Dimensions |
64 in L x 32 in W x 12 in H
|
| Enclosure |
TYPE 1S
|
| Environmental_Conditions |
Indoor
|
| Frame |
MXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Length1 |
64.0000
|
| Mounting_Type |
Surface
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
(-25C -- 75C) AMBIENT TEMPERATURE
|
| Phase |
3
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
SENTRON
|
| Temperature_Rating |
-25 to 75
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
