Thomas & Betts Thomas & Betts 54116
Thomas & Betts 54116
Kirby Risk #: 1825309
UPC: 78621054116, 786210541167, 30786210541168
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

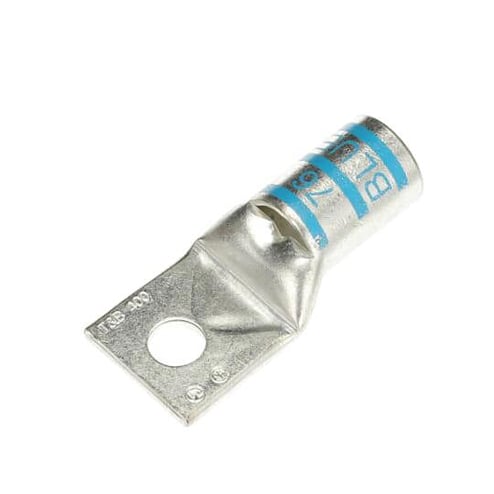

Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 400 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Color Code Blue, Die Code 76
Modified Industry Description
400 CU STD. BRL. 1 HOLE.5 IN BOLT
AD Description
Color-Keyed® 54116 54100 1-Hole Compression Lug, 400 kcmil Copper Conductor, Die Code: 76, 1/2 in Stud, Copper
Vendor Description
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Cable_Size |
400 kcmil
|
| Color |
Blue
|
| Conductor Material |
Copper
|
| Conductor Size |
400
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation |
None
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
6
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
1/2
|
| Sub_Brand |
Color-Keyed
|
| Tongue_Angle |
Straight
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
