Siemens Siemens Q13000S01
Siemens Q13000S01
Kirby Risk #: 1823162
UPC: 783643074859, 78364307485, 00783643074859
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP 1-pole 10k are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Special Features Shunt Trip 120V Application Electrical Distribution Standard UL 489 Voltage Rating 120V AmperageRating 30A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 1P
Modified Industry Description
120VAC SHUNT TRIP
AD Description

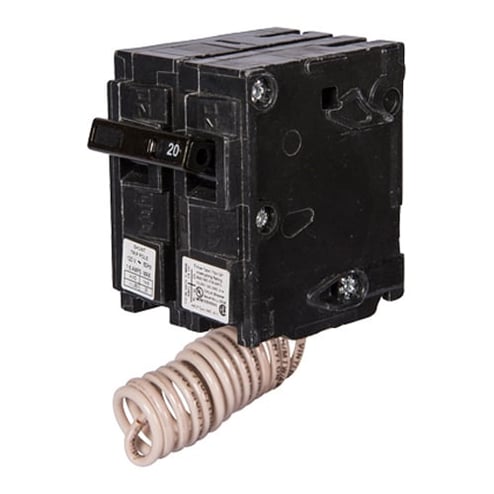

Siemens Q13000S01 Type QP/MP Low Voltage Miniature Residential Molded Case Circuit Breaker With Insta Wire, 120 VAC, 30 A, 10 kA Interrupt, 1 Poles, Shunt/Thermal Magnetic Trip
Specifications
| Actuator |
N/A
|
|---|---|
| Amperage Rating |
30
|
| Application |
ElectricalDistribution
|
| Connection |
PLUG-IN
|
| Conductor Size |
14-6AWG(CU)/12-6AWG(AL)
|
| Country of Origin |
MX
|
| Dimensions |
3 in L x 1 in W x 3 in H
|
| Enclosure |
N/A
|
| Frame |
QP/MP
|
| Frequency_Rating |
60
|
| Interrupt_Rating |
10
|
| Length1 |
5.5500
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
N/A
|
| Phase |
1
|
| Special Features |
|
| Standard |
ULLISTED/CSA/NOMCERTIFIED
|
| Sub_Brand |
Siemens
|
| Temperature_Rating |
40
|
| Type |
Low Voltage Miniature Residential
|
| Voltage Rating |
120
|
