Siemens Siemens B350H00S01


Description

Industry Description

Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 3-Pole, 240VAC are Circuit Protection Molded Case CircuitBreakers. Type BLH Special Features Shunt Trip 120V Application Electrical Distribution Standard UL 489 Voltage Rating 120/240V Amperage Rating 50A Trip Range Thermal Magnetic Interrupt Rating 22 AIC Number Of Poles 3P

Modified Industry Description

120VAC SHUNT TRIP

AD Description

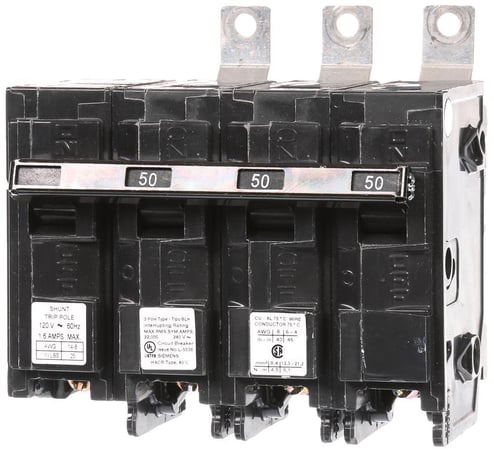

Siemens B350H00S01 Type BLH Low Voltage Molded Case Circuit Breaker, 120/240 VAC, 50 A, 22 kA Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip

Vendor Description

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Specifications

Amperage Rating
50
Brand Name
Siemens
Connection
BOLT-ON
Country of Origin
MX
Enclosure
N/A
Environmental_Conditions
N/A
Frame
BLH
Frequency_Rating
60
Interrupt_Rating
22
Material
N/A
Number_Of_Poles
3
Operating_Temperature
N/A
Phase
3
Special Features

  • 120 VAC shunt trip
  • 8 to 6 AWG copper, 8 to 4 AWG aluminum wire
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Measure the amount of over current
  • Mounting with insta-wire
  • Sense when an over current occurs
Standard
UL 489
Sub_Brand
Siemens
Trip_range
Thermal Magnetic
Trip_Type
Thermal Magnetic
Type
Low Voltage
Voltage Rating
120/240
Width_2
4.0000
Width_3
4.0000
