Hubbell Hubbell HBL4200RS1WR


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Insulgrip Pin andSleeve Devices, Industrial Grade, Female, Receptacle, 200A 600V AC, 3-Pole 4-Wire Grounding Style 1, Terminal Screws, Gray and Black,Watertight- Reversed Service

Modified Industry Description

200A 600V 3 POLE 4 WIRE FEMALE RECEPTACLE REVERSE SERVICE W/PINS

AD Description

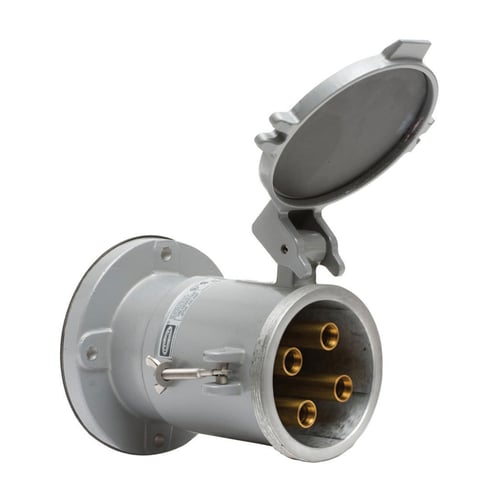

Wiring Device-Kellems HBL® Insulgrip® HBL4200RS1WR Grounding Style 1 Reversed Single Flanged Standard Pin and Sleeve Receptacle, 600 VAC, 200 A, 3 Poles, 4 Wires, Black/Gray

Vendor Description

Metallic where you want it, non-metallic where you need it. Different from traditional all metallic devices, Hubbell® pin and sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. What's more, Hubbell® watertight Insulgrip® pin and sleeve wiring devices are designed with safety first and foremost. We created the line with plant facility maintenance personnel and a safer industrial work environment in mind. To greatly reduce the likelihood of electrical shock, we developed our exclusive nonmetallic watertight system, meaning that with Hubbell® on the job, the mix of electricity and water isn't the threat it once was. So, whether the job calls for a welding outlet in a dry location or a motor disconnect in a wet location, step up to Hubbell® pin and sleeve wiring devices.

Specifications

Amperage Rating
200
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Black/Gray
Connection
Pressure Screw Terminals
Conductor Size
#2 AWG to #4/0 AWG
Country of Origin
US
Environmental_Conditions
Watertight
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
3
Number_Of_Wires
4
Phase
1/3
Size
Standard Sized Product
Special Features

  • All brass sleeve contacts provide reliable electrical contact with mating pins
  • All brass sleeve contacts provide reliable electrical contact with mating pins, also with minimum heat build-up over time
  • Catalog number and rating visible while in use
  • Closure cap with neoprene gasket provides a 4X watertight seal while not in use
  • Ensures reliable electrical contact while minimizing heat rise due to normal pin wear over time
  • Housing seal provides a watertight and dust tight seal when mated with receptacle or connector
  • Locking ring provides a UL type 4X watertight and dust tight seal when the male and female devices are connected
  • Maintains high unit pressure on mating sleeves
  • Markings are color coded differentiating style I and style II devices
  • Molded thermoset polyester provides high resistance to electrical tracking
  • Pin chamber confines arcing within the interior chamber
  • Protects the user from the possibility of touching live contacts during insertion and withdrawal of mating parts
  • Protects users and internal components in the roughest of environments
  • Shroud protects contact sleeves from deforming from physical abuse
  • Sleeve O-ring seal provides a watertight and dust tight seal around the sleeves, assures that contamination will not enter wire chamber
  • Spring loaded, gasketed cover for dust tight seal
  • Thermoplastic housing provides excellent insulating, impact, corrosion and UV resistant properties
  • Thermoset properties provide dimensional stability for this critical assembly
  • Watertight neoprene sealing glands for reliable seal
  • Withstands higher temperatures which may result from overload or arcing
Standard
UL 498, and UL1686
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Single Flanged-Reversed
Voltage Rating
600
Wattage
120,000
