NSI NSi PT2/0
NSI PT2/0
Kirby Risk #: 1814802
UPC: 00662381033055, 662381033055, 662381984562, 66238103305
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description
Stranded Bi-Metallic Pin Terminal 2/0 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Modified Industry Description
Bi Metallic Pin Terminal, 2/0 AWG Wire Size, #1 AWG Tin Plated STRanded Cooper Pin, RED
AD Description

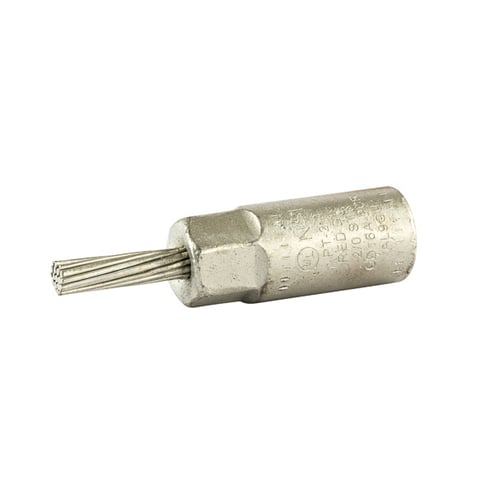

NSI PT2/0 Bi-Metallic Pin Terminal With Plastisol Insulating Cover, 1 to 2/0 AWG Conductor, 0.322 in Dia x 1.251 in L Pin, Aluminum, White
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
White
|
| Conductor Range |
2/0 AWG (STR)
|
| Connection |
# 1 Pin
|
| Country of Origin |
IND
|
| Finish |
Aluminum
|
| Insulation |
Plastisol
|
| Material |
Aluminum/Copper
|
| Package_Quantity |
1.000
|
| Size |
L=3.34 - OD=.900 - ID=.429 - Pin Dia=.322
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Type |
Bi-Metallic Pin
|
| Voltage Rating |
600
|
