Hubbell Hubbell HBL26521


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, Hubbellock, Industrial,Flanged Receptacle, 60A 600V AC, 4-Pole 5-Wire Grounding, Non NEMA,Screw Terminal, Blue

Modified Industry Description

60A 600V FLANGE BLUE

AD Description

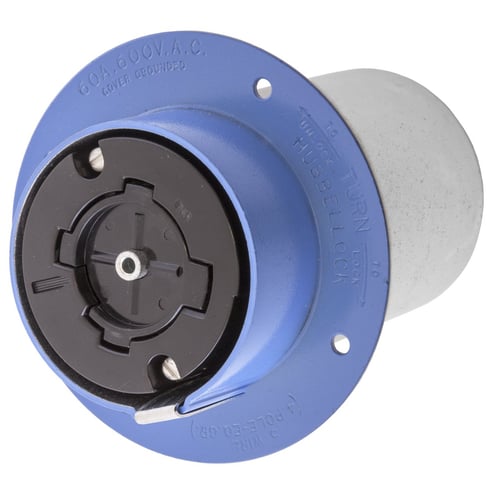

Wiring Device-Kellems Hubbellock® HBL26521 Flanged Heavy Duty Single Standard Locking Receptacle, 600 VAC, 60 A, 4 Poles, 5 Wires, Blue

Specifications

Amperage Rating
60
Application
Heavy Duty Industrial
Brand Name
Hubbell
Color
Blue
Connection
Screw Terminal
Conductor Size
#6 AWG
Country of Origin
US
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Thermoplastic/Composite
Mounting
Screw Mount
NEMA_Rating
Non-NEMA
Number_Of_Poles
4
Number_Of_Wires
5
Phase
Multi-Phase
Size
Standard Sized Product
Special Features

  • Auto ejects improperly made connection
  • Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability
  • Metallic housing provides protection from damage in harsh environments
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Spring loaded safety shutter contains arcing when mating or unmating devices under load
Standard
UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Flanged Single
Voltage Rating
600
Wattage
36
