Hubbell Hubbell HBL432C6W
Hubbell HBL432C6W
Kirby Risk #: 1814014
UPC: 00783585404684, 78358540468, 783585404684
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

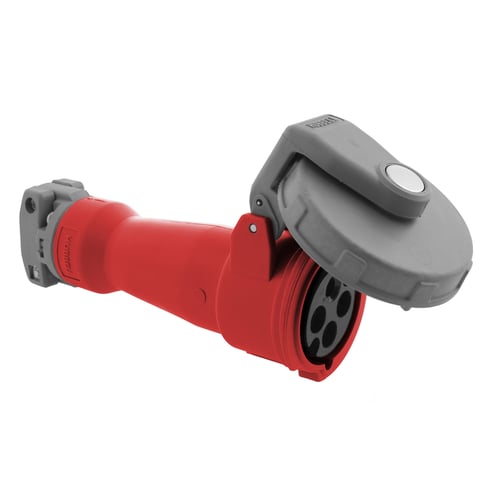

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Female, Connector Body, 32A 380/415V, 3-Pole4-Wire Grounding, Terminal Screws, Red, Watertight
Modified Industry Description
32A 380/415V 3 POLE 4 WIRE FEMALE SLEEVE CONNECTOR BODY
AD Description
Wiring Device-Kellems HBL432C6W Female Heavy Duty Standard Watertight Pin and Sleeve Connector, 380/415 VAC, 32 A, 3 Poles, 4 Wires, Red
Specifications
| Amperage Rating |
32
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Conductor Range |
#12AWG - #8AWG
|
| Connection |
Pressure Screw Terminal
|
| Country of Origin |
US
|
| Environmental_Conditions |
Water Tight
|
| Insulation |
Insulated Body
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number Of Conductors |
4-Wire Grounding
|
| Number_Of_Poles |
3
|
| Size |
Standard
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact.
|
| Type |
Standard
|
| Voltage Rating |
415
|
