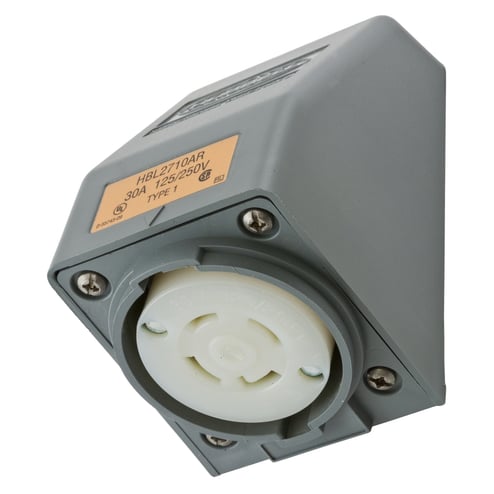

Hubbell Hubbell HBL2710AR


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, SafetyShroud, Angled Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Gray

Modified Industry Description

30A 125/250V RECPT GRAY SAFETY SHROUD

AD Description

Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2710AR 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Gray/White

Specifications

Amperage Rating
30
Application
Heavy Duty Industrial Shrouded
Brand Name
Hubbell
Color
Gray
Connection
Screw Terminal
Conductor Size
#12 AWG to #8 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
PBT
Mounting
Screw Mount
NEMA_Rating
NEMA L14-30R
Number_Of_Poles
3
Number_Of_Wires
4
Phase
1
Size
Standard Sized Product
Special Features

  • -40 to 75 deg C maximum continuous (without impact) operating temperature
  • 0.031 in brass contact spring
  • 0.031 in brass ground contact
  • 0.031 in brass spring binding plate
  • 2000 VAC minimum dielectric voltage withstand
  • 30 A 10 AWG terminal accommodation
  • 4 wire grounding
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Certified for current interrupting at full rated current
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
  • Galvanized steel mounting plate material
  • Gray Valox® 357U housing and flange material
  • HB or better per UL 94 or CSA 22.2 no. 0.6 flammability
  • Impact modified PBT housing
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Natural white nylon body contact carrier material
  • Steel rivet material
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • Zinc plated steel mounting screws
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Angled Shrouded Single
Voltage Rating
125/250
Wattage
7.5k
