Hubbell Hubbell HBL2510AR


Description

Industry Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, SafetyShroud, Angled Receptacle, 20A 3 -Phase Wye 120/208V AC, 4-Pole 5-WireGrounding, L21-20R, Screw Terminal, Gray

Modified Industry Description

20A 120/208V RECPT GRAY SAFETY SHROUD

AD Description

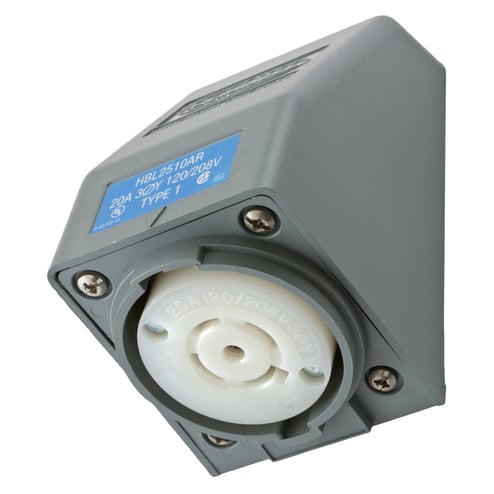

Hubbell® Twist-Lock® Safety-Shroud® HBL2510AR Angled Shrouded Single Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Gray

Specifications

Amperage Rating
20
Application
Heavy Duty Industrial Shrouded
Brand Name
Hubbell
Color
Gray
Connection
Screw Terminal
Conductor Size
#14 AWG to #8 AWG
Country of Origin
US
Dielectric_Strength
Withstands 2,000V minimum
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
PBT
Mounting
Screw Mount
NEMA_Rating
NEMA L21-20R
Number_Of_Poles
4
Number_Of_Wires
5
Phase
3
Size
Standard Sized Product
Special Features

  • 0.031 in brass ground contact
  • 14 to 8 AWG copper only terminal accommodation
  • 2000 VAC minimum dielectric voltage withstand
  • 3-phase
  • 5-wire grounding
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are easily visible even when in use
  • Catalog number and color coded voltage rating are visible even when in use
  • Certified for current interrupting at full rated current
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
  • Galvanized steel mounting plate material
  • Gray Valox® 357U housing and flange material
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
  • Natural white nylon body contact carrier material
  • NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw
  • Steel rivet material
  • Steel, nickel plated 0.08 in curved, scalloped terminal clamp material
  • Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification
  • UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability
  • Zinc plated steel mounting screws
Standard
NEMA WD1 and WD5, UL 498
Sub_Brand
Hubbell Wiring Device-Kellems
Temperature_Rating
-40 to 75
Type
Angled Shrouded Single
Voltage Rating
120/208
Wattage
4,160
