Siemens Siemens LMXD63B800L
Siemens LMXD63B800L
Kirby Risk #: 1804360
UPC: 00783643334977, 783643334977, 78364333497
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER LMD FRAME WITH STANDARD BREAKINGCAPACITY. 800A 3-POLE (25KAIC AT 600V) (50KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA3K500) WIRE RANGE 1/0AWG - 500KCMIL (CU/AL). DIMENSIONS (W x H x D) IN 7.50 x 16.0 x 4.50.
Modified Industry Description
3P 800A 600V CB
AD Description

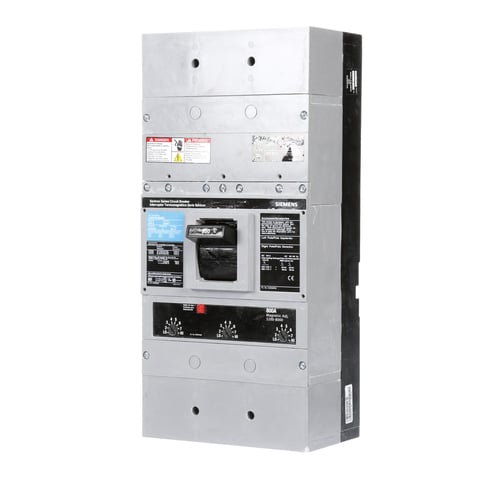

Siemens Sentron™ LMXD63B800L Type LMXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 800 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
800
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
Line/Load lugs installed
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
LMXD6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
25
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Poles |
3
|
| Special Features |
|
| Standard |
UL/HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
3200 to 8000
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
600
|
