Intermatic Intermatic K4236C


Description

Industry Description

The 120-277V 50/60Hz 1800-4100W "T" SWIV MNT The K4200 Series Photo Controls feature stern and swivel mounting, with thermal-type controls. Thermal-type photo controls, which are available in single or multi-voltage models, provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights, and lightning. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.

Modified Industry Description

2300W 120/277V - Swivel PHOTOCELL

AD Description

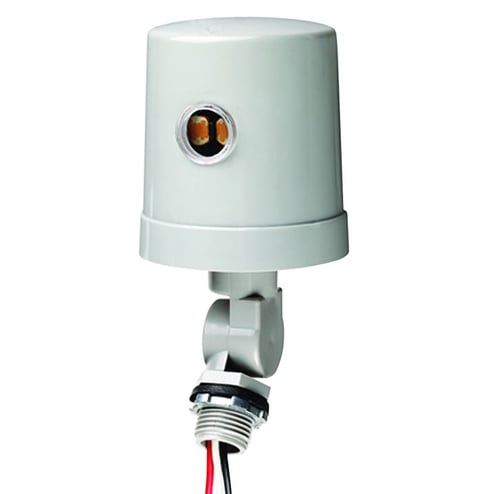

Intermatic® K4236C K4200 Stem and Swivel Mounting Photocontrol, 120 to 277 VAC, 1800 to 4150 W Tungsten, 1000 to 2300 VA Ballast, Stem Mount, Polycarbonate

Vendor Description

The K4200 series photo controls feature stem and swivel mounting, with thermal-type controls. thermal-type photo controls, which are available in single or multi-voltage models, provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lightning. the thermal-type controls feature a cadmium sulfide photocell and a sonic welded polycarbonate case and lens to seal out moisture. the design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes.

Specifications

Amperage Rating
15 A, 8.3 A
Application
Dusk to Dawn cntrl.
Ballast_Power_Rating
4100
Brand Name
Intermatic
Color
Gray
Connection
Color coded Leads
Country of Origin
MX
Enclosure
Plastic Outdoor
Environmental_Conditions
-40 to 158 deg F Operating Temperature
Frequency_Rating
50/60
Material
Polycarbonate
Mounting
Stem and Swivel Mntg.
Mounting_Type
Stem
Operating_Temperature
(-)40 - 158F
Power_Consumption
3 watts Max.
Sensitivity
1 to 5 FC ON/3 to 15 FC OFF
Sensor
Cad. Sulft.
Size
6-1/4x3 DiaInches
Source
Automatic Switching
Special Features

  • 1/2-14 thread size
  • 2 W power consumption
  • 6 in lead wire
  • Automatic switching source
  • Provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lighting
  • The design utilizes a dual temperature compensating bi-metal and composite resistor for reliable long life operation over ambient temperature extremes
  • The thermal type controls feature a cadmium sulfide photocell and a sonic welded polycarbonate case and lens to seal out moisture
  • Thermal type photo controls, which are available in single or multi-voltage models, provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching off due to car headlights and lightning
Standard
ANSI C136.10
Sub_Brand
Intermatic
Supply_Voltage
480
Timing_Range
Dusk On - Dawn OFF
Tungsten_Current_Rating
15
Tungsten_Watts
1800 - 4150
Type
Thermal
Voltage Rating
120 to 277
Wattage
2300
