Burndy Burndy YAZV6CTC14FX


Description

Industry Description

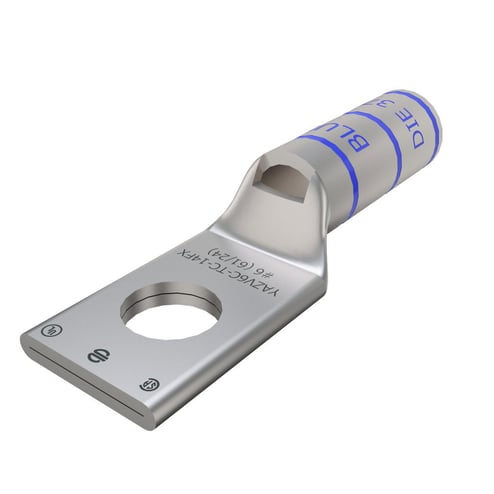

Copper Compression Lug, 1 Hole w/ Inspection Window, 6 Flex, 1/4" Stud, Long Barrel, Tin Plated.

AD Description

BURNDY® HYLUG YAZV6CTC14FX 1-Hole Compression Lug With Inspection Window, 6 AWG Stranded Copper Conductor, Die Code: 7/374, 1/4 in Stud, Copper

Vendor Description

BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

Specifications

Application
For Flex Conductors
Country of Origin
US
Length1
1.5900
Material
Copper
Special Features

  • 6 AWG flex, 6 AWG copper stranded conductor
  • Electro tin plated
  • For mechanical: MD6, OUR840, MD7-34R tool, (2), W5CVT, W5CRT, X5CRT die, hydraulic: BCT500HS, Y500CTHS tool, (2), W5CVT, W5CRT, X5CRT die, Y35, Y39, Y750, PAT750 tool, (2), U5CRT die, Y46 tool, (2), U5CRT die with PUADP-1 adapter, dieless tools (number Of Crimps): (1), Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V tool, (2) Y1MRTC, MY29-3, MY29-11, MRC840 installation tool
Standard
UL 486A-486B
Sub_Brand
HYLUG
Type
Long Barrel, Skive
Voltage Rating
35,000
