NSI NSi 2-600L2
NSI 2-600L2
Kirby Risk #: 1791180
UPC: 00662381001429, 662381001429, 66238100142
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

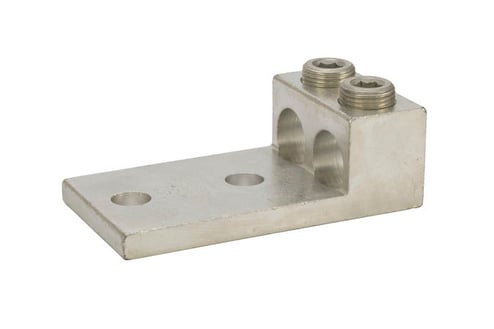

2 Port Panelboard Lug 600 MCM - 2 AWG Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
Modified Industry Description
600MCM 2-BARREL 2-HOLE MECH LUG
AD Description
NSI 2-600L2 Dual Rated Panelboard Lug, 2 AWG to 600 kcmil, 1/2 in Bolt/Stud, Surface Mount, 1-3/4 in Hole Spacing, For Use With Copper or Aluminum Conductor
Specifications
| Application |
Wire Termination
|
|---|---|
| Bolt_Size |
1/2
|
| Brand Name |
NSi
|
| Color |
Silver
|
| Conductor Range |
2 AWG to 600 kcmil
|
| Conductor_Range_Main_Primary |
600 MCM-2 AWG
|
| Country of Origin |
USA
|
| Finish |
Electro-Tin Plated
|
| Material |
Aluminum
|
| Mounting_Hole_Spacing |
1.75
|
| Number_of_Conductors_Ports_Main_Primary |
2
|
| Number_Of_Mounting_Holes |
2
|
| Number_Of_Ports |
2
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
cULus
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90 C
|
| Type |
Dual Rated
|
| Voltage Rating |
600
|
