Burndy Burndy YAV28-TC12-FXB
Burndy YAV28-TC12-FXB
Kirby Risk #: 1790342
UPC: 00781810044636, 78181004463, 781810044636
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Burndy
Description
Industry Description

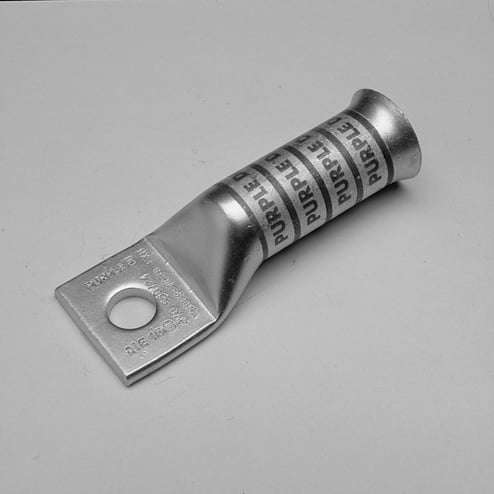

Copper Compression Lug, 1 Hole w/o Inspection Window, 250 Flex, 1/2" Stud, Long Barrel, Belled End, Tin Plated.
Modified Industry Description
4/0 FLEX CABLE 1/2 1-HOLE
Specifications
| Application |
For Flex Conductors
|
|---|---|
| Brand Name |
Burndy
|
| Cable_Size |
4/0 AWG, 4/0 AWG Weld, 550/24, 120 SQ-MM For Class 5 Conductor
|
| Color |
Purple
|
| Conductor Material |
Copper
|
| Conductor Size |
4/0
|
| Country of Origin |
US
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
UL Listed At 90 DEG C, 600 V To 35 KV, CSA Certified, RoHS Compatible
|
| Stud_Size |
1/2
|
| Sub_Brand |
Burndy
|
| Temperature_Rating |
90
|
| Type |
1-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
