Hoffman Hoffman A242411CT


Description

Industry Description

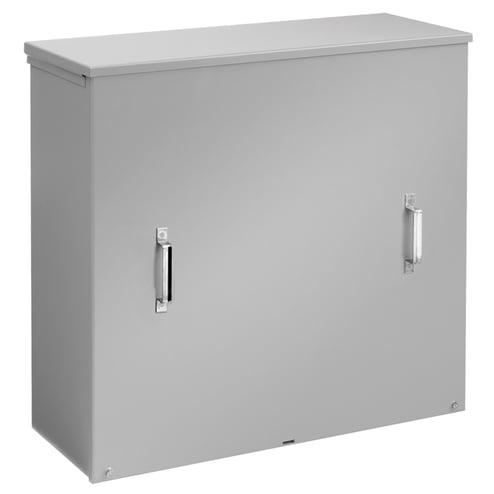

Current Transformer, Screw Cover, Type 3R, 24.00x24.00x11.00, Steel

Modified Industry Description

CT ENCLOSURE, SCREW COVER

AD Description

Hoffman A242411CT A90CT Current Transformer Enclosure, 24 in L x 24 in W x 11 in D, NEMA 3R NEMA Rating, Steel

Vendor Description

Current transformer cabinets provide outdoor protection and security for instrument current transformers, which are frequently required for transformer-rated watt-hour metering. Cabinets can also be used as junction or service boxes and house meter, transformer, relay or terminal assemblies.

Specifications

Application
Current Transformer Cabinets provide outdoor protection and security for instrument current transformers, which are frequently required for transformer-rated watt-hour metering. Cabinets can also be used as junction or service boxes and house meter, trans
Brand Name
Hoffman
Color
Galv/paint
Country of Origin
MX
Material
Steel
NEMA_Rating
3R Weather-resistant, except dust
Size
24.00X24.00X11.00 in
Special Features

  • 16, 14 or 12 ga plated steel
  • 8 in enclosure dimension parallel to strips
  • 8 terminal blocks per strip
  • ANSI 61 gray color
  • ANSI 61 gray polyester powder paint finish inside and out over plated surfaces
  • Door handles provided
  • Drip shield top and seam-free sides, front and back
  • IP32 degree of protection
  • Mounting holes on back of enclosure
  • No gasketing or knockouts
  • Provisions for padlocking
  • Slip-on removable cover fastened with captivated plated steel screws along bottom edge
Standard
UL 50, 50E Listed, Type 3R, File No. E27525, cUL Listed per CSA C22.2 No 94, Type 3R, File No. E27525, NEMA Type 3R, IEC 60529, IP32
Sub_Brand
Hoffman
Type
Current Transformer, Screw Cover, Type 3R
